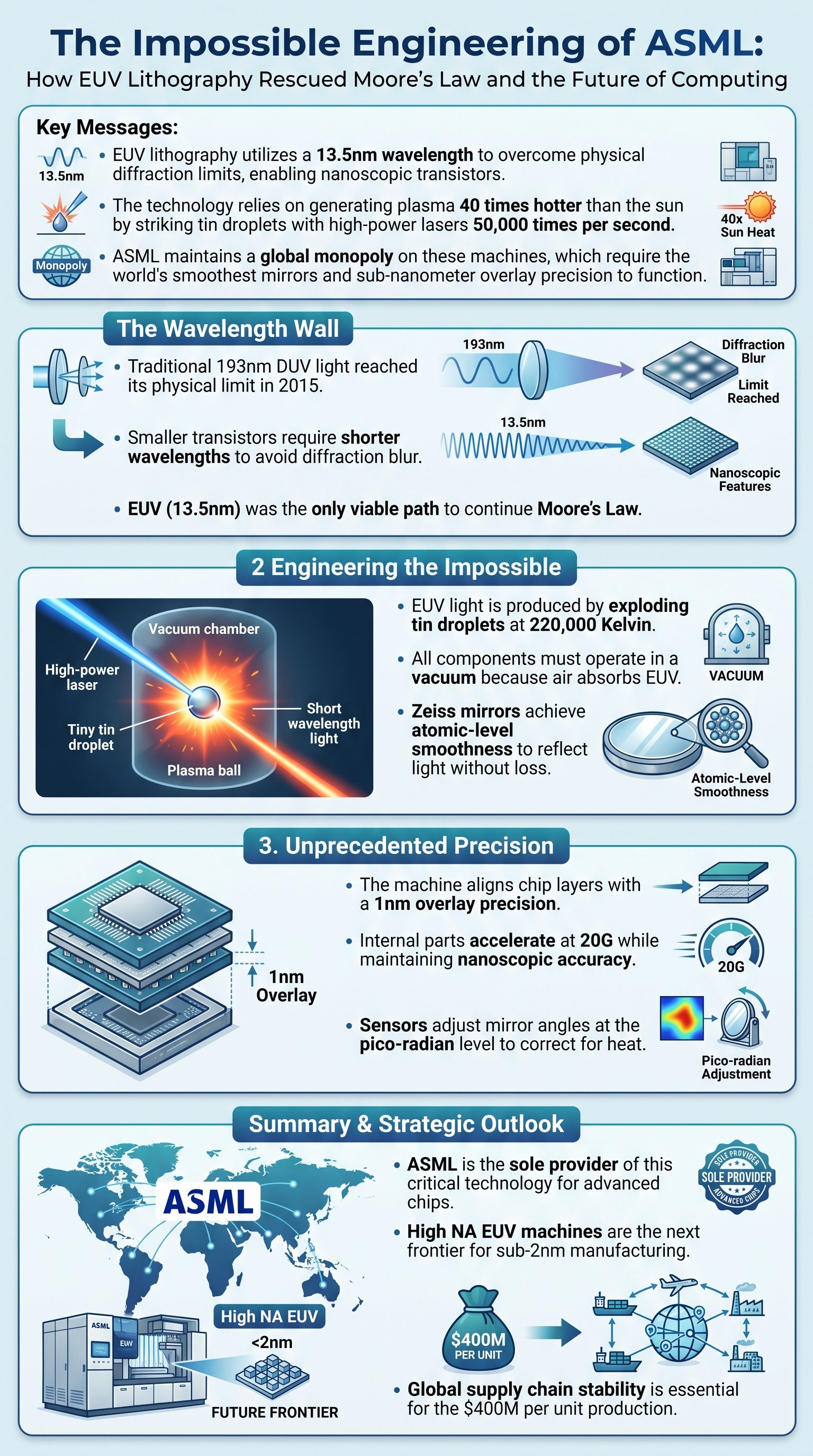

For over 50 years, the semiconductor industry followed Moore's Law, doubling the number of transistors on a chip every two years. This progress relied on photolithography, the process of using light to print circuit patterns onto silicon. However, by 2015, the industry hit a physical wall. The 193-nanometer wavelength of Deep Ultraviolet (DUV) light was too large to print the smaller features required for next-generation chips, causing diffraction patterns that blurred the final image.
To overcome this, scientists turned to Extreme Ultraviolet (EUV) light, which has a wavelength of just 13.5 nanometers. This shift was not merely an incremental upgrade but an engineering feat previously deemed impossible. Because EUV is absorbed by almost all materials, including glass and air, the entire process must occur in a vacuum. Furthermore, traditional lenses cannot focus EUV; it requires specialized multi-layer mirrors that reflect light with atomic precision.
The creation of EUV light itself is a marvel of physics. ASML's machines utilize a 'laser-produced plasma' source. A microscopic tin droplet is shot into a vacuum at 250 kilometers per hour. A high-power CO2 laser strikes this droplet twice: once to flatten it into a pancake shape, and a second time to vaporize it into a plasma. This plasma reaches temperatures of 220,000 Kelvin, creating what engineers describe as 'mini supernovas' inside the machine 50,000 times every second.
Controlling this environment presents extreme challenges. The mirrors, manufactured by Zeiss, are likely the smoothest objects ever created. If one of these mirrors were scaled up to the size of the Earth, the largest bump on its surface would be no thicker than a playing card. This level of smoothness is necessary to prevent the short-wavelength EUV light from scattering randomly, ensuring it reaches the silicon wafer with perfect clarity.
During operation, the machine's internal components undergo massive physical stress. The reticle, which holds the chip design, moves with accelerations exceeding 20 Gs—five times that of a Formula 1 car. Despite this violent motion, the machine must align multiple layers of a chip with 'overlay' precision of just 1 nanometer. This is equivalent to the thickness of five silicon atoms, a feat that requires a complex 'nervous system' of sensors and robotic actuators.
To keep the optical system clean, ASML engineers developed a hydrogen-based cleaning cycle. The tin explosions produce debris that could ruin the expensive mirrors in hours. By filling the chamber with low-pressure hydrogen gas, the tin particles are slowed down and chemically converted into a gas called stannane, which is then flushed out. This allows the machine to operate continuously for months at a time in a commercial manufacturing environment.
ASML is currently the only company in the world capable of producing these EUV machines. Each unit costs upwards of $400 million and requires a massive logistical operation to ship. A single 'High NA' EUV machine is disassembled into 250 containers and transported across seven Boeing 747 aircraft. The supply chain involves over 5,000 companies providing 100,000 specialized parts, highlighting the global interdependence of modern high-tech manufacturing.
The development of EUV took over three decades and billions of dollars in investment from industry giants like Intel, Samsung, and TSMC. Many early researchers were ridiculed, and the project was nearly abandoned several times due to funding cuts and technical failures. It was the persistence of ASML and its partners that eventually turned these 'fish stories' into the foundation of the modern digital economy.
As we move toward even smaller transistors, ASML is already deploying 'High NA' (High Numerical Aperture) machines. These systems use even larger optics to further shrink the printed patterns. This evolution ensures that Moore's Law will continue for the foreseeable future, enabling more powerful AI, more efficient smartphones, and complex computing tasks that were once considered science fiction.
Ultimately, the EUV machine represents the pinnacle of human collaboration and precision engineering. It is a reminder that overcoming the fundamental limits of physics requires not just brilliant minds, but also decades of financial risk and industrial perseverance. Without this 'impossible' machine, the rapid pace of technological advancement we take for granted would have come to a permanent halt.
