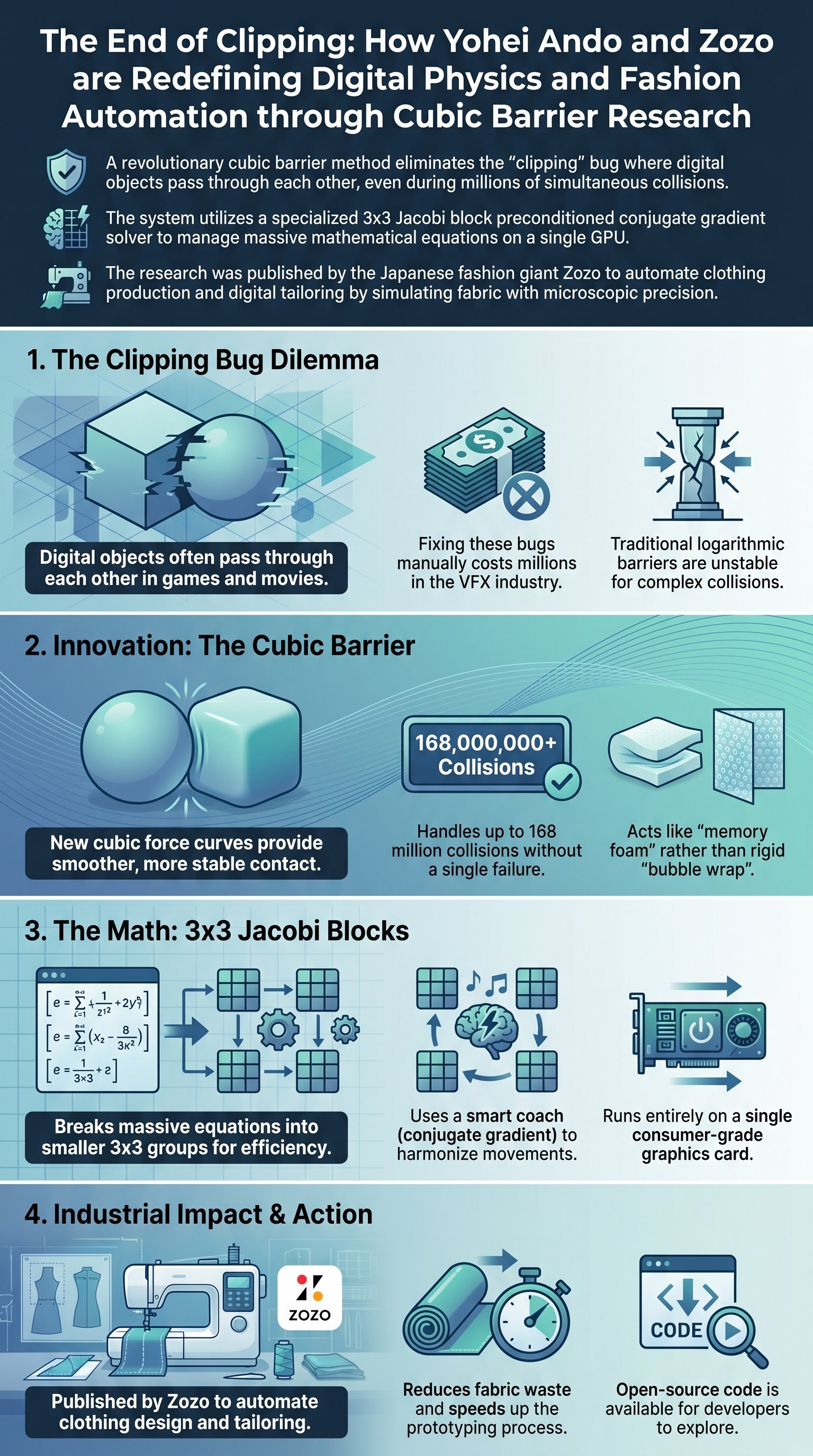

The Persistent Challenge of Digital Collision and Clipping
In the realm of computer graphics and gaming, the 'clipping' bug has long been a source of frustration for developers and a playground for speedrunners. Clipping occurs when the geometry of two digital objects, particularly thin ones like cloth, ribbons, or hair, fails to recognize a boundary and passes through another object. While speedrunners leverage these glitches to skip levels, the visual effects industry spends millions of dollars and thousands of man-hours manually fixing these errors in movies. For years, the industry has thrown massive compute farms at the problem, yet a truly robust, automated solution for complex contact physics remained elusive.
Traditionally, simulations used logarithmic barriers to prevent interpenetration. However, these methods often 'panic' and freeze when objects get extremely close, leading to instability or unrealistic behavior. This instability is particularly evident when simulating materials with high friction or those that are tightly packed, such as a bowl of noodles or layers of folded fabric. The inability to maintain a stable simulation under these conditions has been a major roadblock for industries that require high-fidelity digital representations of physical materials, including fashion and advanced engineering.
Key insight: Clipping isn't just a visual glitch; it is a fundamental failure of mathematical solvers to resolve the forces of contact before geometry overlaps.
Enter the groundbreaking research by Yohei Ando, which introduces a method capable of handling up to 168 million collisions without a single instance of clipping. This technology represents a paradigm shift from reactive error correction to proactive contact resolution. By fundamentally changing how digital boundaries are calculated, the research enables simulations that were previously thought impossible on consumer-grade hardware. We are no longer just avoiding intersections; we are simulating the intricate dance of matter at a scale that mirrors physical reality.
- Visual Fidelity: Eliminates the need for manual VFX cleanup.
- Stability: Prevents simulation 'explosions' during high-stress collisions.
- Scalability: Handles millions of contact points simultaneously.
- Accessibility: Runs on a single graphics card rather than a data center.
Engineering the Cubic Barrier for Seamless Contact Prevention
The core innovation of this paper is the transition from logarithmic barriers to a cubic barrier method. While the old logarithmic approach slams the brakes when two surfaces are about to touch—often causing the system to stutter or freeze—the cubic method provides a much smoother force curve. Think of it as the difference between hitting a concrete wall and pressing into a high-tech memory foam cushion. The cubic barrier allows the simulation to ease into collisions, providing a more natural and stable response that prevents objects from ever fusing together.
This method is particularly effective for 'thin shells' like fabric. In previous iterations, such as the Offset Geometric Contact (OGC) technique, objects were essentially wrapped in a layer of 'bubble wrap' to keep them apart. While effective in many scenarios, OGC struggled with extremely tiny gaps or when millions of contacts occurred at once. The cubic barrier, by contrast, dynamically adjusts its stiffness based on the material's own elasticity. This adaptability ensures that even microscopic gaps remain open, allowing for the simulation of complex, multi-layered materials like silk or densely packed noodles without the layers collapsing into one another.
Goal: To create a simulation environment where digital matter behaves with the same physical constraints as real-world materials.
| Feature | Logarithmic Barrier | Cubic Barrier (New) |
|---|---|---|
| Collision Response | Abrupt and prone to freezing | Smooth and adaptive force curve |
| Gap Management | Constant or fixed offsets | Dynamically adjusts based on elasticity |
| Stability | High risk of 'simulation explosion' | Exceptionally stable under extreme stress |
| Thin Object Handling | Struggles with high-density shells | Perfect for multi-layered cloth and noodles |
The Mathematical Backbone: 3x3 Jacobi Block and Smart Solvers
To handle the staggering amount of data generated by millions of collisions, Yohei Ando implemented a specialized mathematical solver known as a 3x3 Jacobi block preconditioned conjugate gradient method. To the layperson, this sounds like technical wizardry, but its purpose is essentially organizational efficiency. When millions of objects collide, a standard solver tries to calculate every single interaction simultaneously, which leads to computational chaos and extreme slowdowns. The Jacobi block method instead breaks the 'dance floor' into small, manageable groups of 3x3 nodes, calculating their movements independently before harmonizing them.
