The Heritage of the John Taylor Bell Foundry
Located in Leicestershire, the John Taylor Bell Foundry stands as the last working large-scale bell foundry in the United Kingdom. This facility is not merely a factory but a living museum where modern safety protocols meet 19th-century industrial techniques. The foundry employs approximately 30 skilled workers, including experienced foremen like Anthony and younger apprentices like Sam, who represent the next generation of this rare trade. The environment is one of extreme physical demands, where the ability to swing a sledgehammer and manage workshop cranes is as important as a keen ear for musical pitch.
The workshop's daily operations involve the transformation of molten metal into bells that weigh several tons. Interestingly, many of the tools and equipment, such as the heavy metal outer cases used for molds, date back to the 1840s. These Victorian-era components are so robust and well-designed that they require no replacement even after nearly two centuries of use. This blend of ancient hardware and modern expertise allows the foundry to produce instruments of incredible longevity and acoustic beauty.
Key insight: The foundry serves as a bridge between centuries, utilizing the same physical tools and metallic stamps used by craftsmen in the 1800s to ensure historical accuracy for modern restorations.
| Feature | Description |
|---|---|
| Location | Leicestershire, UK |
| Staff Size | Approximately 30 specialized workers |
| Equipment Age | Some components date back to the 1840s |
| Primary Product | Large-scale church and carillon bells |
The Material Science of Bell Molds

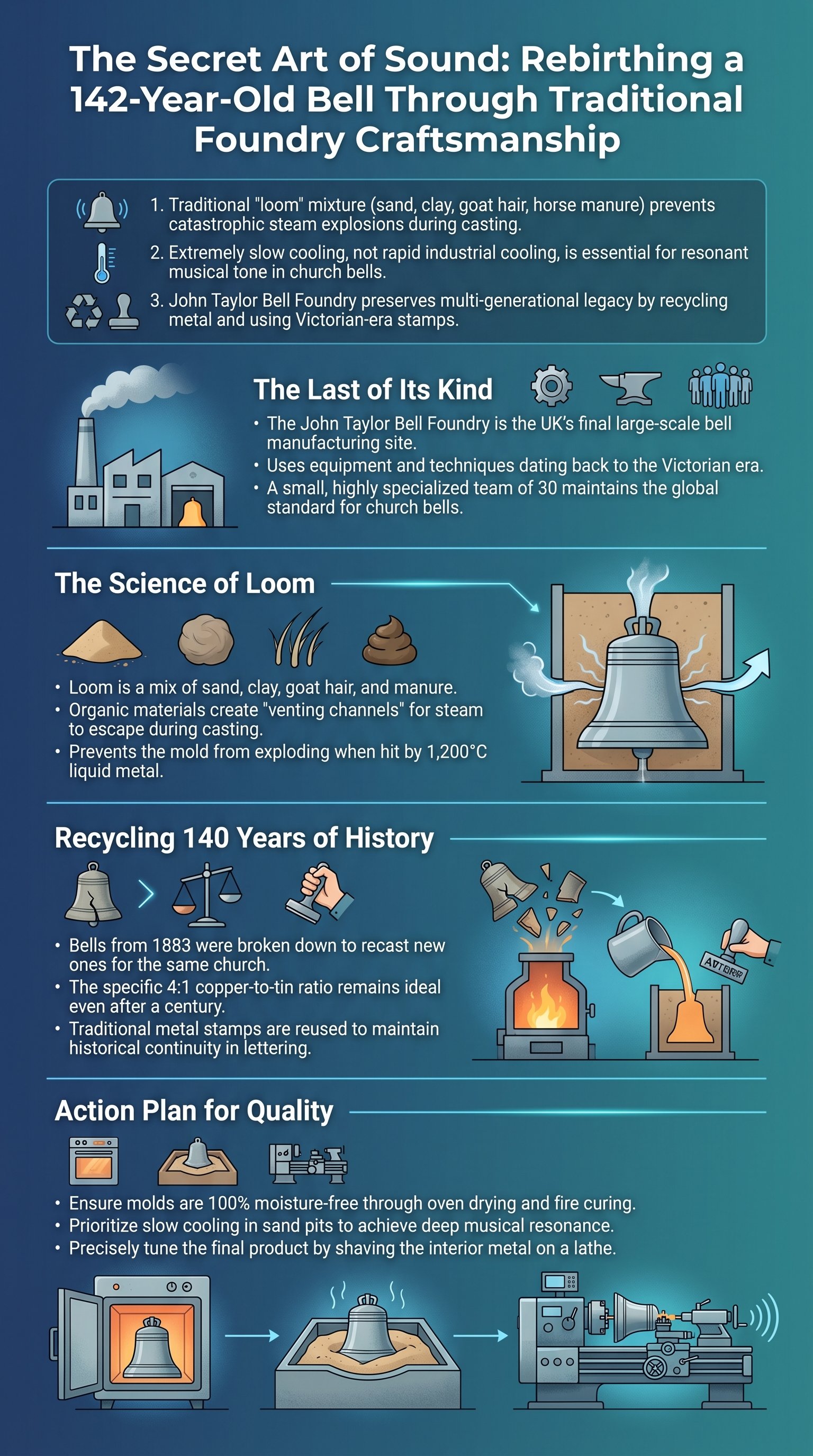

A critical aspect of bell founding is the creation of the mold, which consists of two primary parts: the outer mold and the inner core. The outer mold is made of a unique material called loom (or loam). This is a specialized mixture of sand, clay, water, goat hair, and horse manure. While the use of manure might seem archaic, it serves a vital engineering purpose. The organic fibers from the hair and manure burn away when the 1,200°C molten metal is poured, creating microscopic channels. These channels allow gases and steam to escape safely; without them, the mold could literally explode due to internal pressure.
The inner part of the mold, known as the core, is typically made of chemically bonded air-set sand. This material uses resins and catalysts to harden into a solid mass. Unlike the loom, which is dried in a specialized oven at a 'nap-perfect' temperature, the core is cured using an alcohol-based coating that is set on fire. This ensures the core is completely moisture-free before it interacts with the liquid metal. Any remaining moisture in either mold component would lead to steam bubbles, ruining the bell's structural integrity and sound quality.
Caution: Moisture is the ultimate enemy in a foundry. Even a tiny amount of water trapped in a mold can cause a violent steam explosion when hit by molten metal.
- 1Prepare the Loom (Sand, Clay, Manure, Hair)
- 2Apply Loom to the steel case and press designs/lettering
- 3Dry the outer mold in the foundry oven
- 4Form the inner core using resin-bonded sand
- 5Cure the core with an alcohol-based fire coating
- 6Apply a graphite 'gray coat' for easy release
Breaking History: The Recycling Process
The project featured in the video involves recasting bells for a church in Cornwall that were originally manufactured by the same John Taylor foundry in 1883. After 142 years of exposure to the elements and repeated mechanical strikes, the original bells had lost their tonal quality. However, the bronze itself—a specific 4:1 ratio of copper to tin—is still perfectly viable. To prepare for the new casting, these historical artifacts must be smashed into smaller pieces using sledgehammers to fit into the furnace.
