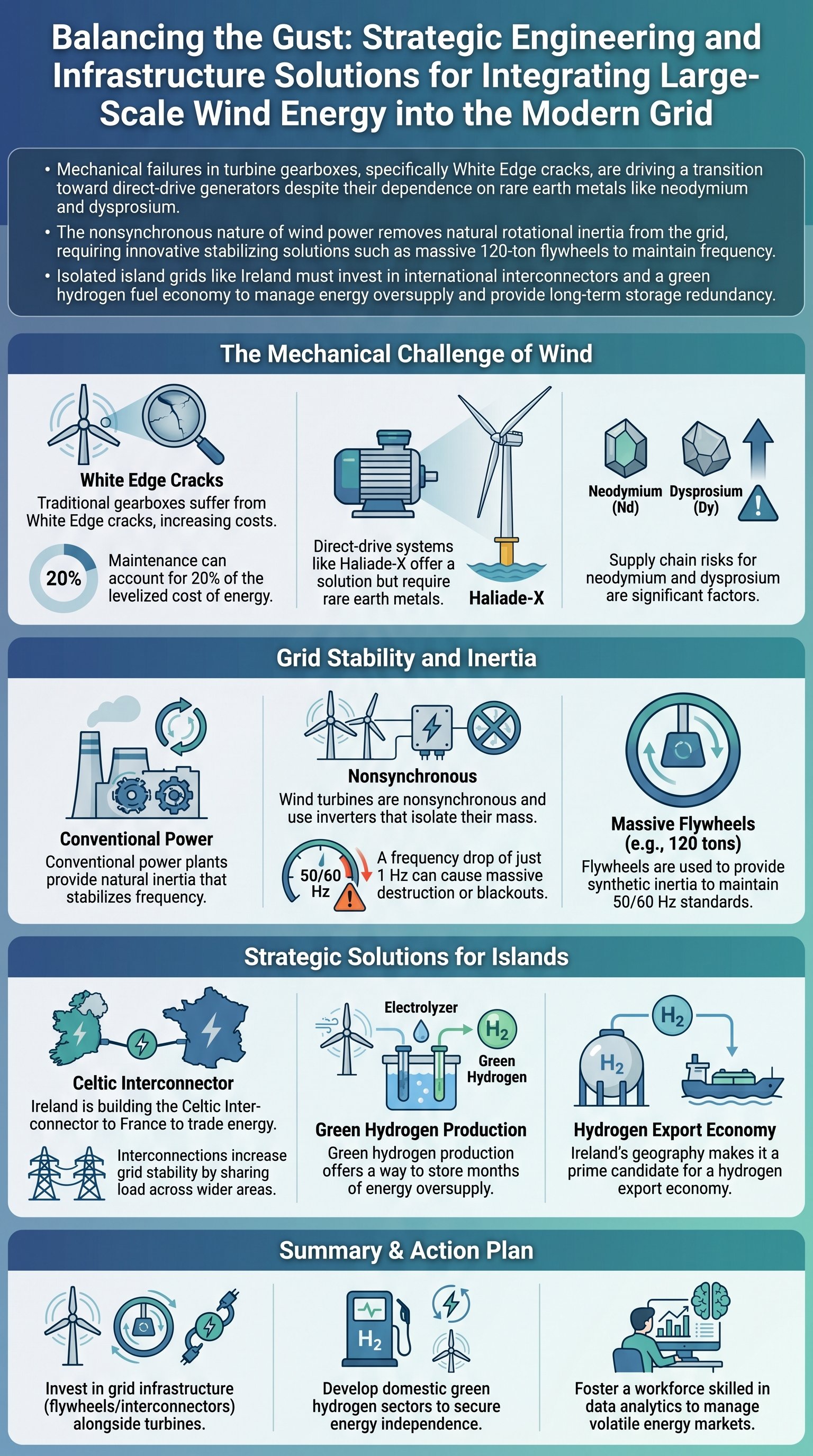

Balancing the Gust: Strategic Engineering and Infrastructure Solutions for Integrating Large-Scale Wind Energy into the Modern Grid

Wind energy has become a cornerstone of the global transition to renewables, yet the engineering reality inside the nacelle reveals a significant reliability challenge. Most modern turbines rely on complex gearboxes to convert the slow, high-torque rotation of the blades—typically 10 to 20 revolutions per minute—into the 1,800 RPM required by traditional generators. These heavy, 15-ton components use a multi-stage process involving planetary gears and helical gears. Despite being designed for a 20-year lifespan, many of these systems fail within just seven years, leading to astronomical maintenance costs that can consume nearly 20% of the levelized cost of energy. This is particularly problematic for offshore installations where salty conditions and high winds make access difficult and dangerous.

The primary culprit behind these premature failures is a phenomenon known as White Edge cracks. These small, structurally damaging cracks form on the bearings, surrounded by a pale material that indicates fatigue. As turbines grow larger and more powerful, the torque levels increase, necessitating even more gear stages and exacerbating the stress on these components. This has forced the industry to look toward direct drive systems like those found in the Haliade-X turbine. By eliminating the gearbox entirely, engineers can connect the blades directly to the generator, significantly reducing the number of moving parts and potential points of failure.

However, direct drive technology introduces its own set of geopolitical and economic hurdles. These generators require massive permanent magnets made from rare earth metals, specifically neodymium and dysprosium. Currently, China controls approximately 90% of the global supply for these materials. Trade negotiations, embargos, and fluctuating material costs add layers of risk to the production of these high-efficiency machines. For nations like Ireland, testing these new technologies at sites like the Galway wind Park is essential, but it requires massive logistical efforts, such as lowering roads near the Latalia rail bridge just to transport the enormous blades.

Ultimately, the choice between gearbox-driven and direct-drive turbines is a balance of upfront capital expenditure versus long-term operational costs. As the industry scales toward even larger rotors to capture higher-altitude winds, the mechanical limits of traditional gearboxes are being pushed to the breaking point. The transition to direct-drive systems appears inevitable for offshore applications, where the cost of a single repair mission can jeopardize the profitability of an entire wind farm. Engineers must continue to refine these designs to ensure the heart of the turbine can withstand the brutal environments they are built to harvest.

A power grid is a delicate ecosystem that must maintain a constant frequency—60 Hz in the US or 50 Hz in Europe—to prevent catastrophic failure. Traditional power plants using coal or nuclear energy provide a natural stabilizing effect called inertia. These plants utilize massive, heavy steam turbines that are synchronized directly to the grid. Because they are so heavy and rotate so fast, they cannot be easily slowed down by sudden shifts in demand. This physical momentum acts as a shock absorber for the grid, providing operators with precious seconds to adjust power supply when a sudden load appears, such as during a national television commercial break when millions of people turn on electric kettles.

Wind turbines, however, present a unique challenge because they are nonsynchronous. Early turbine designs used fixed-speed blades that were synchronized to the grid, but these were prone to fatigue failure from wind gusts. To maximize energy extraction, modern turbines use variable speed control, changing the angle of attack of the blades via massive bearings in the hub. This means the electricity produced has a varying frequency that cannot be fed directly into the grid. Instead, the power must pass through rectifiers and inverters, converting AC to DC and then back to AC at the precise required frequency. This electronic conversion effectively disconnects the turbine's physical mass from the grid, meaning its inertia cannot help stabilize the system.

The lack of inertia is not just a technical hurdle; it is a critical vulnerability for the energy transition. When politicians push for higher percentages of renewables without accounting for grid stability, they risk systemic failures. During the Texas power crisis, the grid fell dangerously close to 59 Hz, teetering on the edge of a total blackout that could have lasted for months. While wind turbines were only partially to blame—natural gas infrastructure also failed—the incident highlighted the danger of isolated grids that lack the stabilizing support of interconnected neighbors. For a country like Ireland, which functions as an isolated energy island, this problem is even more acute.

Managing a grid with high wind penetration requires a constant 24/7 balancing act. Grid operators must monitor consumption patterns and weather forecasts with extreme precision. The move toward variable-speed turbines was a win for efficiency and mechanical longevity, but it created a "stability debt" that must be paid with additional infrastructure. As older coal and nuclear plants are decommissioned, the natural buffer of inertia is disappearing, forcing engineers to look for artificial ways to mimic the behavior of those massive rotating steam turbines.
