The Anatomy of Utility: Deciphering the Three-Layer Composition

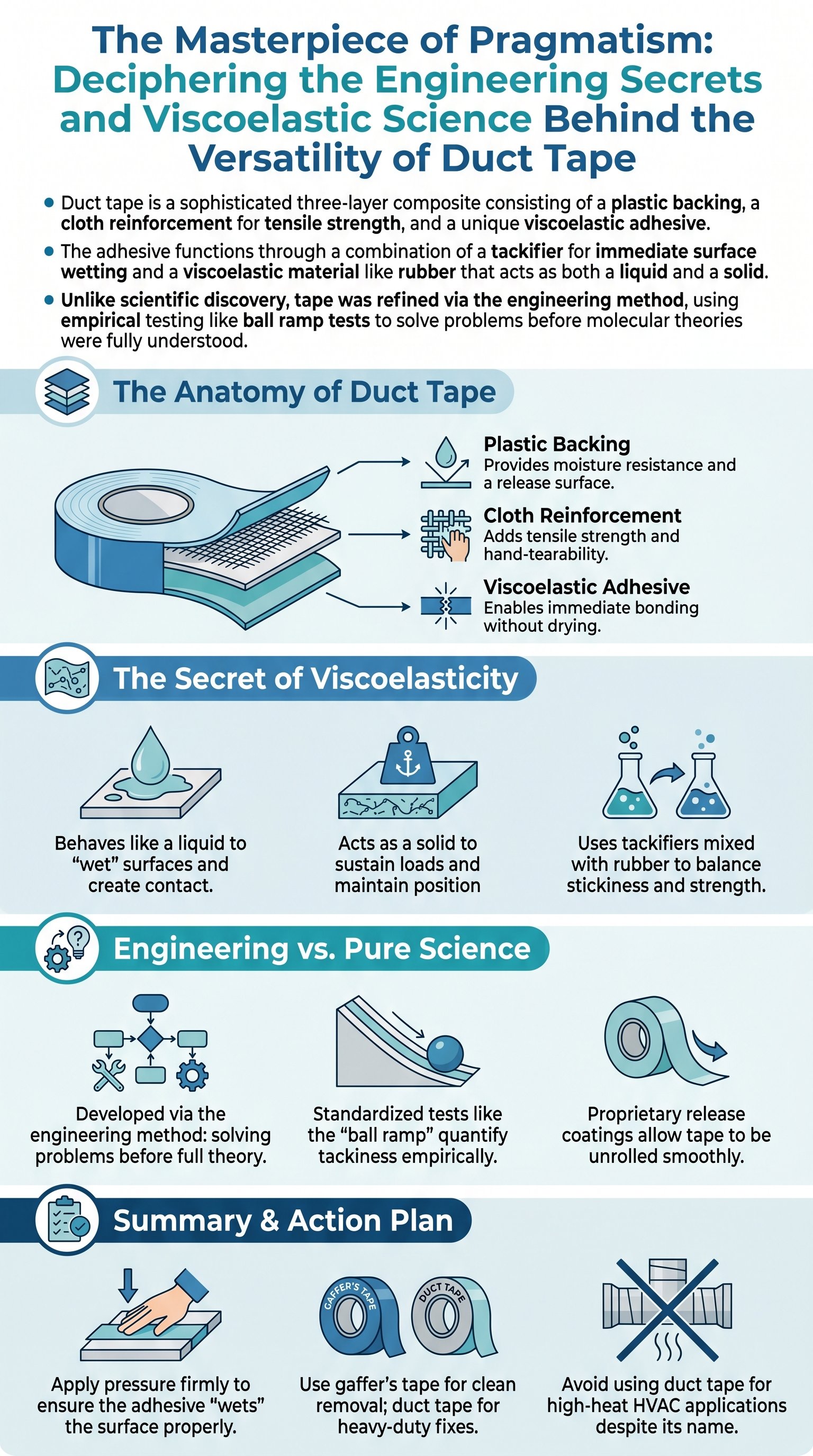

Duct tape is often viewed as a simple household commodity, yet its internal structure reveals a masterpiece of functional engineering. Originally developed during World War II to protect ammunition boxes from moisture, its utility has expanded to include automotive repairs, industrial maintenance, and even life-saving improvised solutions in space exploration. To understand its true nature, one must look past the silver surface and examine the three distinct components that allow it to perform under pressure: the plastic backing, the cloth reinforcement, and the viscoelastic adhesive.
By dissolving the tape in a solvent such as Toluene, engineers can isolate these layers to study their individual contributions. The plastic backing, typically made of polyethylene, provides a moisture-resistant barrier and a surface for the release coating. This layer is what allows the tape to be wound into a roll without sticking to itself permanently. It serves as the foundation upon which the other more complex materials are layered, providing the primary defense against environmental factors.
Note: The iconic silver color of duct tape was a later addition; original versions used for the military were olive drab to match ammunition crates.
Embedded within the tape is a cloth mesh, often made of cotton, polyester, or nylon. This reinforcement is the source of the tape's structural integrity, allowing it to support significant weight and resist tearing along the length of the roll. Interestingly, the weave of this cloth is intentionally loose. This design choice is not merely a cost-saving measure; it allows the adhesive to flow through the mesh and bond directly to the plastic backing, creating a single, integrated unit without the need for multiple separate adhesive layers.
| Component | Primary Material | Key Function |
|---|---|---|
| Backing | Polyethylene | Moisture barrier and surface for release coating |
| Reinforcement | Woven Fabric | Provides tensile strength and prevents elongation |
| Adhesive | Rubber/Tackifier | Creates pressure-sensitive bonds through wetting |
Goal: The objective of duct tape engineering is to balance three conflicting requirements: easy application, high load-bearing capacity, and clean removal.
Ultimately, the synergy between these layers is what defines the performance of the tape. Without the cloth, the tape would stretch and fail under tension; without the backing, the adhesive would be exposed and difficult to handle. It is the combination of these elements that enabled the crew of Apollo 13 to construct a makeshift carbon dioxide filter, proving that the right materials, correctly engineered, can solve almost any problem.
The Science of Stick: Understanding Viscoelasticity and Pressure Sensitivity
The most remarkable aspect of duct tape is its adhesive, which belongs to a class of materials known as pressure-sensitive adhesives. Unlike traditional glues, such as Elmer's Glue, which solidify through the evaporation of solvents, tape adhesive remains in a permanent state of readiness. It does not 'dry' in the conventional sense. Instead, it relies on a property called viscoelasticity, which allows a substance to behave as both a liquid and a solid simultaneously depending on the force applied to it.
To achieve this, engineers mix a tackifier—a sticky, resinous substance similar to thick syrup—with a viscoelastic polymer, typically rubber. The tackifier provides the 'initial grab' by spreading across the surface to be bonded, a process known as 'wetting.' However, a tackifier alone lacks the internal strength to hold weight. By blending it with rubber, the adhesive gains the ability to resist deformation while maintaining its ability to flow and fill the microscopic valleys of a surface when pressed.
Key insight: Viscoelastic materials like Silly Putty demonstrate this duality; they flow like liquid under slow gravity but shatter like a solid when struck or pulled with high velocity.
When you apply pressure to duct tape, you are forcing the viscoelastic adhesive to 'wet' the surface. This creates millions of points of contact at the molecular level, maximizing the Van der Waals forces between the tape and the substrate. This transition from a resting state to a bonded state happens in an instant, providing immediate utility without the curing time required by liquid adhesives or structural epoxies.
- 1Initial Contact: The tackifier touches the surface.
- 2Pressure Application: The adhesive flows into surface irregularities (wetting).
- 3Solid State Anchorage: Once applied, the material acts as a solid to support weight.
- 4Elastic Removal: Upon peeling, the material stretches and snaps off cleanly.
Caution: Temperature significantly affects viscoelasticity. High heat can cause the adhesive to lose its solid-like properties, leading to 'cohesive failure' or messy residue.
This delicate balance of properties is what allows duct tape to hold a five-pound weight effortlessly while remaining removable by hand. The engineering challenge lies in ensuring the adhesive is 'liquid' enough to wet the surface but 'solid' enough to maintain the bond under a continuous load. It is a high-wire act of chemical engineering that we often take for granted in our daily lives.
Structural Integrity and Removal: The Role of Reinforcement and Residue
While the adhesive provides the bond, the cloth reinforcement provides the strength. The long fibers running along the length of the tape are responsible for supporting tension, while the bundles of fibers running perpendicular allow the tape to be torn straight by hand. This 'hand-tearability' is a critical feature for field repairs where tools might not be available, yet it does not compromise the tape's ability to hold together heavy machinery or improvised spacecraft components.
