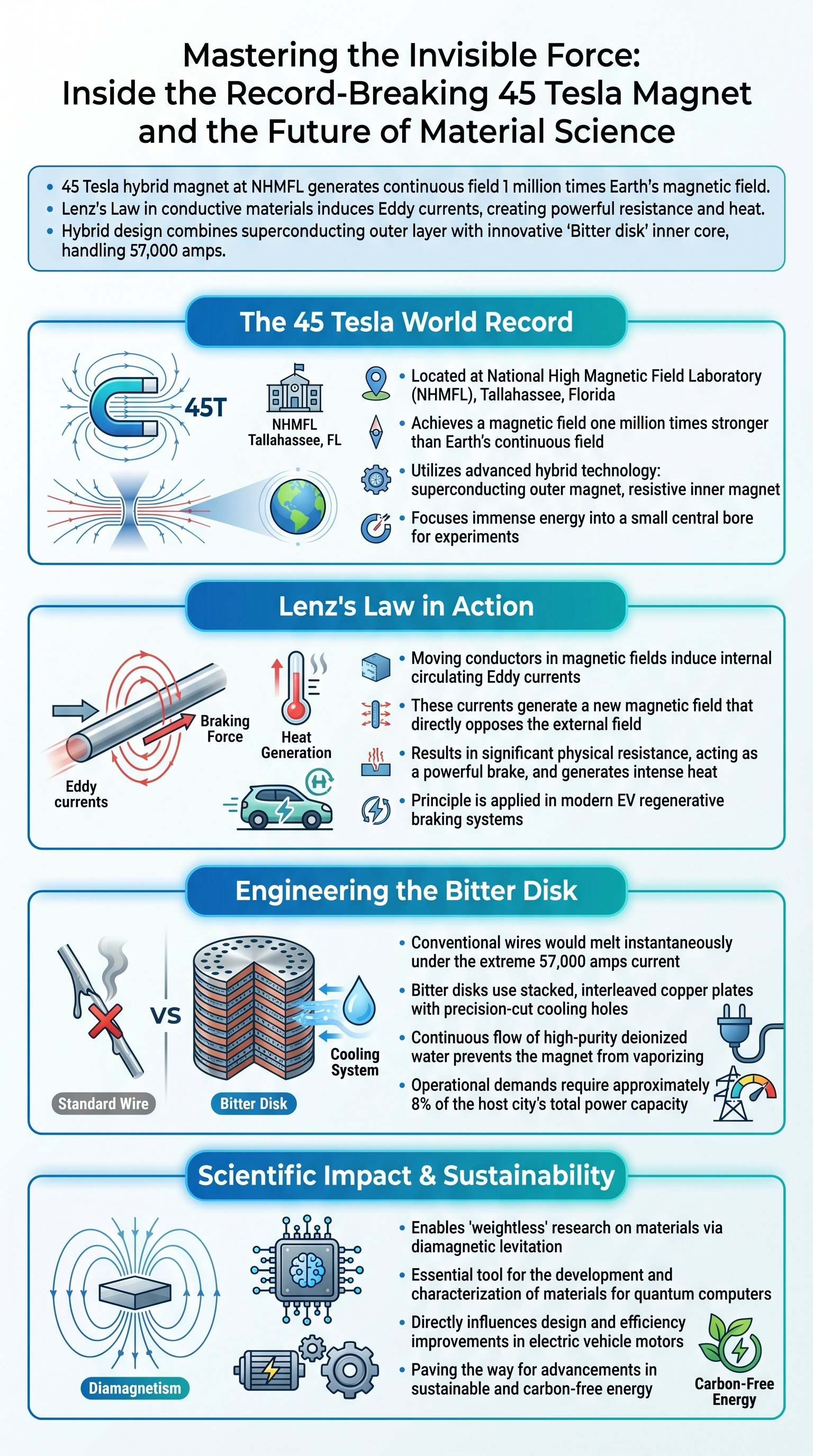

The Engineering Marvel of the 45 Tesla Hybrid Magnet
The quest for the world's strongest magnetic field leads us to the National High Magnetic Field Laboratory (NHMFL) in Tallahassee, Florida. This facility houses the crown jewel of magnetic engineering: a 45 Tesla hybrid magnet that has held the Guinness World Record since 2000. To put this into perspective, the Earth's magnetic field is a mere 0.00005 Tesla, while a standard refrigerator magnet sits at 0.01 Tesla. Even advanced medical MRI (MRI) machines typically operate at 3 Tesla. The 45 Tesla field is a colossal leap, representing a force nearly a million times stronger than the natural magnetism surrounding us.
Achieving such a field requires a hybrid approach. It consists of an outer superconducting magnet and an inner resistive magnet. Superconductors are incredibly efficient because they have zero electrical resistance, but they have a 'critical field' limit. If the magnetic field becomes too intense, the superconducting property collapses. Therefore, the NHMFL team uses the superconducting layer to provide a baseline field of 11.5 Tesla and then employs a massive resistive magnet to push the total strength to the 45 Tesla threshold. This two-story apparatus is the pinnacle of human engineering, focusing its maximum power into a cylinder just centimeters wide.
Operating this behemoth is a logistical challenge of epic proportions. Ramping the magnet to full power takes approximately 90 minutes as technicians pump 47,000 amps of current into the superconducting coils. The safety protocols are stringent; any ferromagnetic object within the '100 Gauss line'—the boundary where the fringe field begins to exert significant pull—must be cleared. A single forgotten steel chair can be accelerated with enough force to 'gut' the furniture, turning it into a lethal projectile. This is not just a laboratory; it is an environment where the fundamental laws of physics are amplified to their extreme.
| Magnet Type | Magnetic Strength (Tesla) | Relative Power vs. Earth |
|---|---|---|
| Earth's Magnetic Field | 0.00005 | 1x |
| Fridge Magnet | 0.01 | 200x |
| Medical MRI | 3.0 | 60,000x |
| NHMFL Hybrid Magnet | 45.0 | 900,000x |
Key insight: The hybrid design is essential because superconductors fail under their own intense magnetic fields, necessitating a 'resistive' inner core to reach the 45 Tesla record.
Lenz’s Law and the Invisible Resistance of Eddy Currents
When we move non-magnetic but conductive materials like copper or aluminum through the 45 Tesla field, we witness a phenomenon that looks like science fiction. As a copper plate falls toward the magnet, it doesn't accelerate under gravity as expected. Instead, it slows down as if falling through thick molasses. This is the physical manifestation of Lenz's Law, which states that an induced electric current flows in a direction such that the current opposes the change that induced it. We often call this the 'no you don't' law of nature.
As the plate moves, the changing magnetic flux induces Eddy currents within the metal. These currents create their own magnetic field that pushes back against the magnet's field. The result is a powerful braking force that converts kinetic energy into heat. In high-power demonstrations, a plate falling through a strong field can actually become warm to the touch. This principle is so strong that even a volleyball wrapped in aluminum foil will stop mid-air and drop vertically when thrown across the magnet's fringe field, its forward momentum completely neutralized by invisible electromagnetic resistance.
Caution: In these environments, even non-magnetic electronics like CMOS (CMOS) sensors in cameras can fail. Electrons are redirected by the field, causing digital artifacts or total equipment failure.
- 1Moving conductors generate internal circular currents called Eddy currents.
- 2These currents create a secondary magnetic field opposing the primary magnet.
- 3The interaction results in kinetic energy being converted into thermal energy.
- 4This 'magnetic braking' is powerful enough to resist manual human force.
Nature acts to oppose any change in magnetic flux, creating a physical resistance that feels like moving through a solid wall of air. This invisible force is not just a curiosity; it is the fundamental principle behind regenerative braking in electric vehicles (EV) and various industrial sorting technologies.
Levitation Through Superconductivity and Diamagnetism
Beyond simple attraction and repulsion, the NHMFL explores the frontiers of levitation. There are two primary ways to defy gravity here: superconducting flux pinning and diamagnetism. In the case of superconductors, the material expels all magnetic fields—a phenomenon known as the Meissner Effect. However, engineered superconductors contain tiny defects that 'trap' magnetic field lines. This is known as flux pinning, and it allows a magnet to be locked in space above a superconductor, supporting the weight of a human being without any physical contact.
